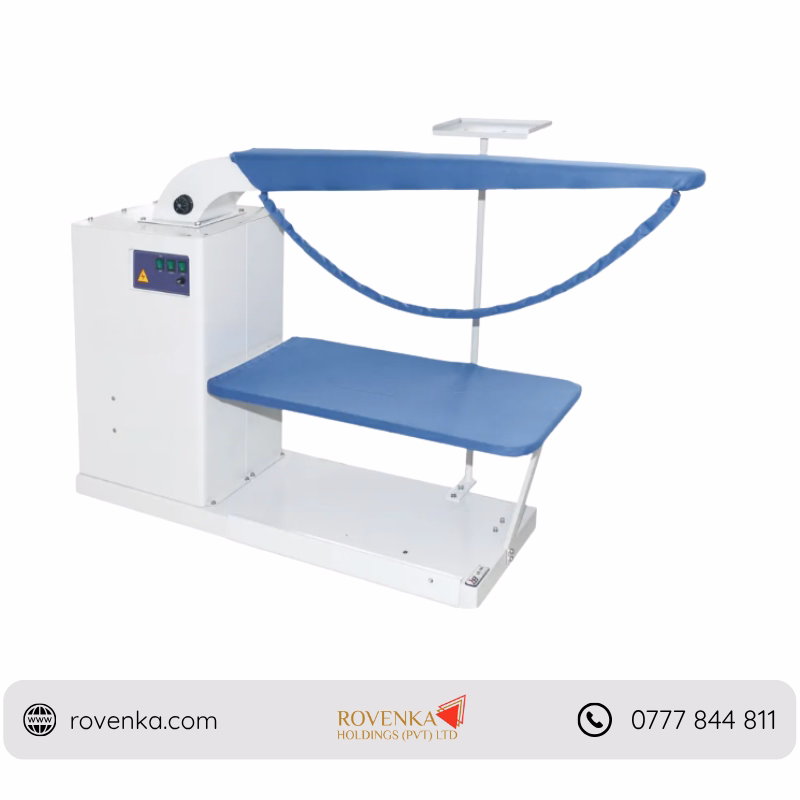

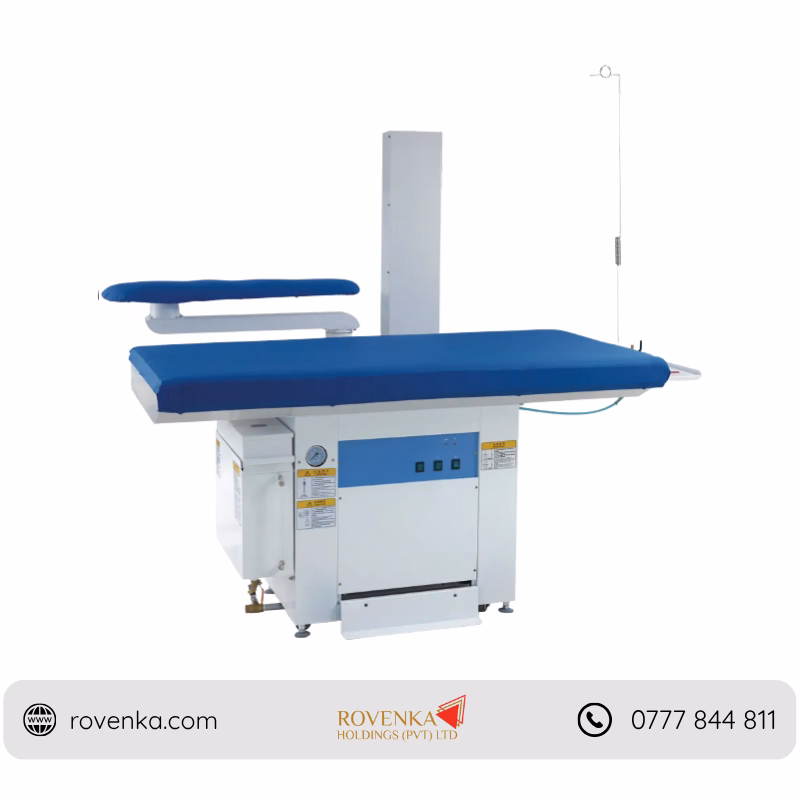

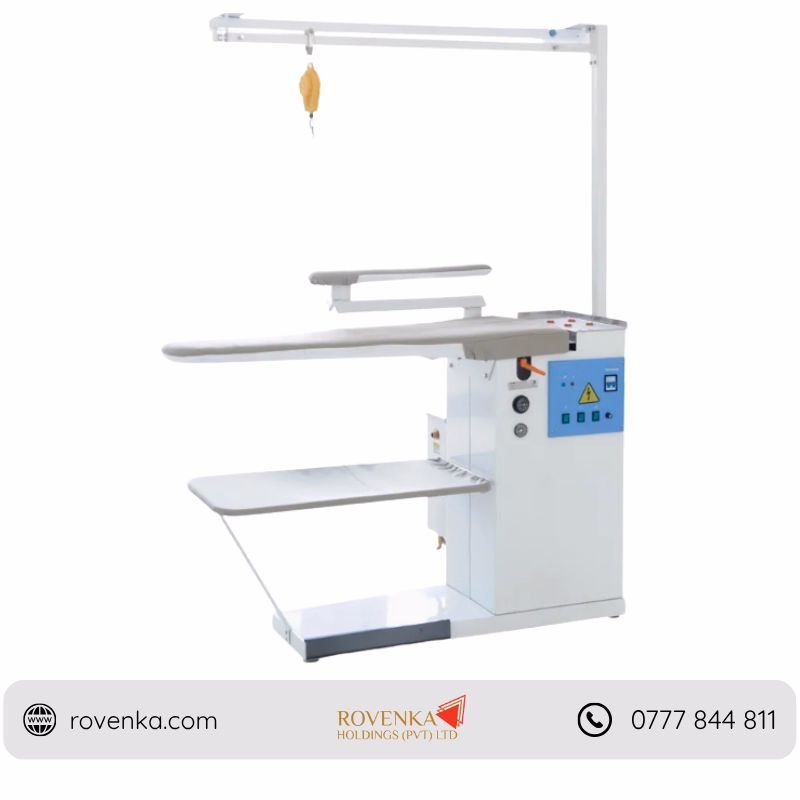

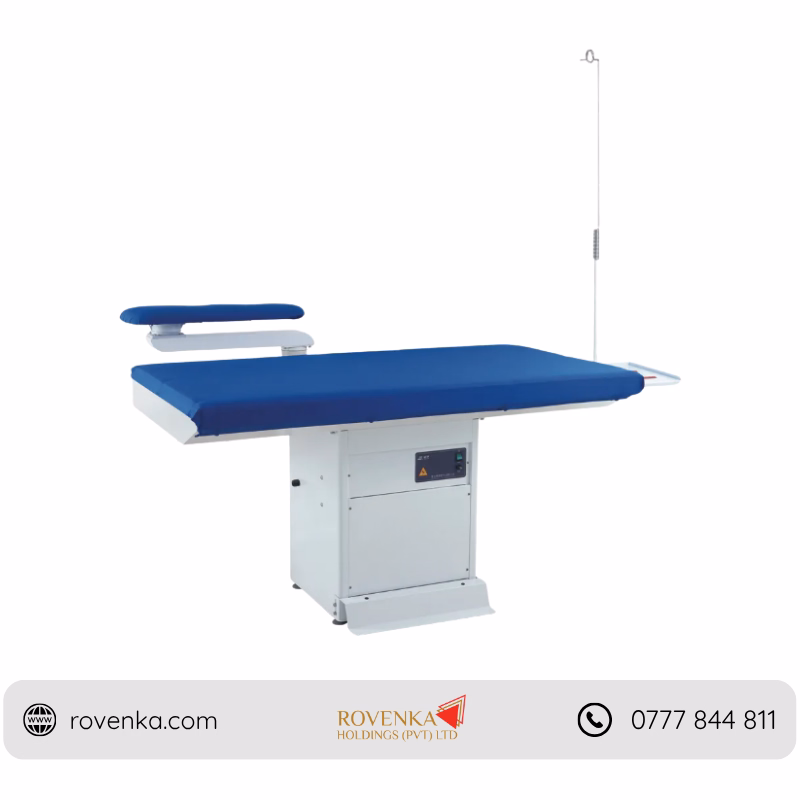

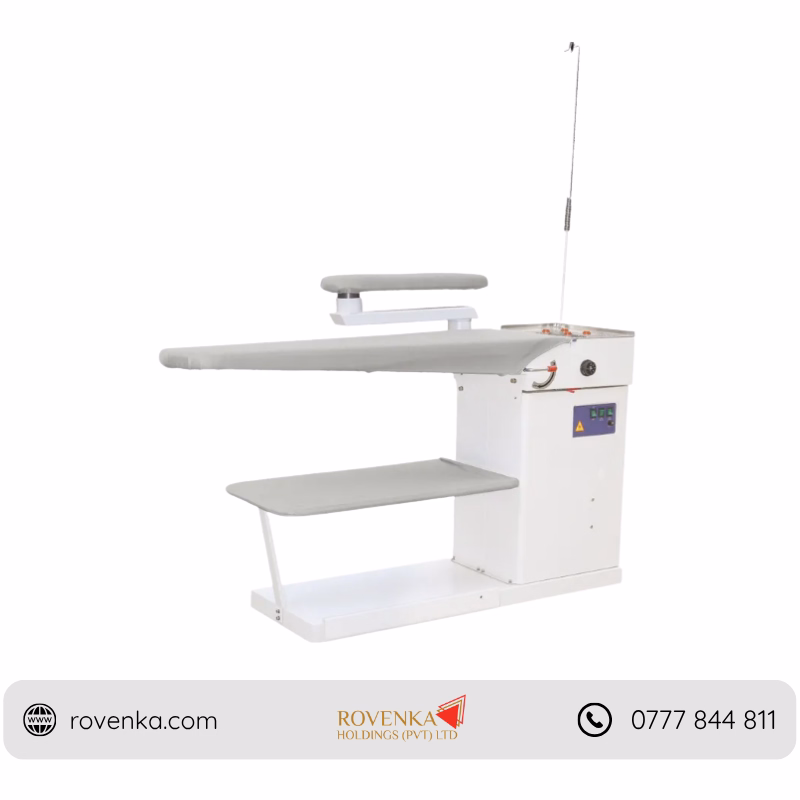

Industrial Steam Ironing Table

A high-performance ironing workstation designed for professional garment care and industrial textile processing. The TDG-B1 ironing table combines powerful heating, consistent steam generation, and vacuum suction to deliver precise, wrinkle-free finishing for garments and fabrics.

Equipped with a gantry and pulley system, it allows smooth and controlled fabric handling, improving efficiency during ironing operations. The integrated electric heating element ensures uniform heat distribution, while the boiler feed pump and steam system provide continuous, high-pressure steam output for professional results. The built-in vacuum motor enhances moisture removal and fabric positioning, ensuring crisp and high-quality finishing.

Available in multiple size options, this ironing table is suitable for garment factories, laundry services, and tailoring environments where durability, performance, and efficiency are essential.

Product Specifications

• Product Type: Industrial ironing table
• Model: TDG-B1
• Heating System: Tubular electric heating element
• Heating Power: 4.5 kW
• Boiler Feed Water Pump Power: 550 W
• Vacuum Motor Power: 750 W
• Vacuum Pressure: < -150 Pa
• Steam Pressure: 0.4 MPa
• Evaporation Rate: 6 kg/h
• Rotational Speed: 2800 r/min
• Design: Gantry with pulley system
• Table Size Options: 820 × 1220 mm / 820 × 1500 mm
• Function: Steam ironing with vacuum suction
• Structure: Heavy-duty industrial workstation
• Application: Garment factories, laundry units, tailoring shops, textile production
• Performance: High efficiency, stable operation, consistent steam and heat output
